CNC Van Build Kit
Build Your Own Dream Van with Precision CNC Floor Plans
Skip the stress, save time, and build a professional-grade van with precision-engineered CNC floor plans designed to fit your Sprinter like a glove.
These plans are based on real-world experience—tested and refined over 40+ custom van builds.
With the CNC Van Build Kit, you get:
✅ Expert-level precision – Every panel, every cut, measured to perfection
✅ Faster build process – No hand-cutting or guesswork—just plug, cut, and assemble
✅ Professional-quality results – A van that looks and feels like it was built by the pros
Whether you're a DIYer or a seasoned builder, these CNC files make it easy to create a flawless, functional van—without the frustration.
Who It’s For
✔ DIY Van Builders – You’re doing it yourself but want expert precision
✔ Vanlifers Ready to Upgrade – You want a pro-level layout without the pro-level price
✔ Professional Van Shops – You need a reliable, efficient way to cut and assemble builds
✔ Anyone Building a Van – No measuring, no trial and error—just perfect results
Whether you’re starting from scratch or upgrading your setup, our CNC floor plans take the guesswork out of van building.
Why You Need It
Van builds are time-consuming and complicated—unless you have the right tools.
Without CNC plans, you’re stuck:
❌ Measuring everything by hand (and hoping it’s accurate)
❌ Cutting each panel manually (hello, uneven edges)
❌ Wasting materials on mistakes (goodbye, budget)
Why Use CNC Floor Plans?
✔ Save Time: No manual measuring or hand-cutting required
✔ Professional Accuracy: Perfect cuts and consistent quality every time
✔ Proven Layout: Designed by experts, used in real-world van builds
✔ DIY or Pro Ready: Whether you’re self-building or running a van shop, these plans work
Stop guessing. Start building.
With CNC Van Build Kit, you’ll have a rock-solid foundation for your dream van—faster, smarter, and easier
What You Get
Detailed Construction Drawings – Professional blueprints with every measurement and panel detail for all the cabinetry and rear benches/bed area
CNC-Ready Files – Precision files for CNC cutting and edge banding—just send them to your local shop
Optimized Layouts – A tried-and-tested designs based on real-world builds
Cutting Guide + Materials List – Know exactly how many sheets of plywood you’ll need before you start
Assembly Drawings – Follow along with clear assembly guidance
These are the exact plans we use in our professional van builds—now available for you.
How It Works
1️⃣ Purchase & Download – Get instant access to your CNC-ready files
2️⃣ Cut Your Materials – Upload the files to a CNC router or send them to a shop
3️⃣ Assemble Your Build – Follow the assembly drawings for flawless results
4️⃣ Hit the Road – Enjoy a pro-level van without the pro-level price tag
No guesswork. No wasted time. Just an easy, efficient build process.
CNC Van Build Kit
For a fraction of the cost of hiring a van conversion company, you get everything you need to DIY your build with precision and confidence.
$500
(One-Time Purchase)
Instant download + lifetime access. No recurring fees, no waiting—just plug and build.
Pick your floor plan below

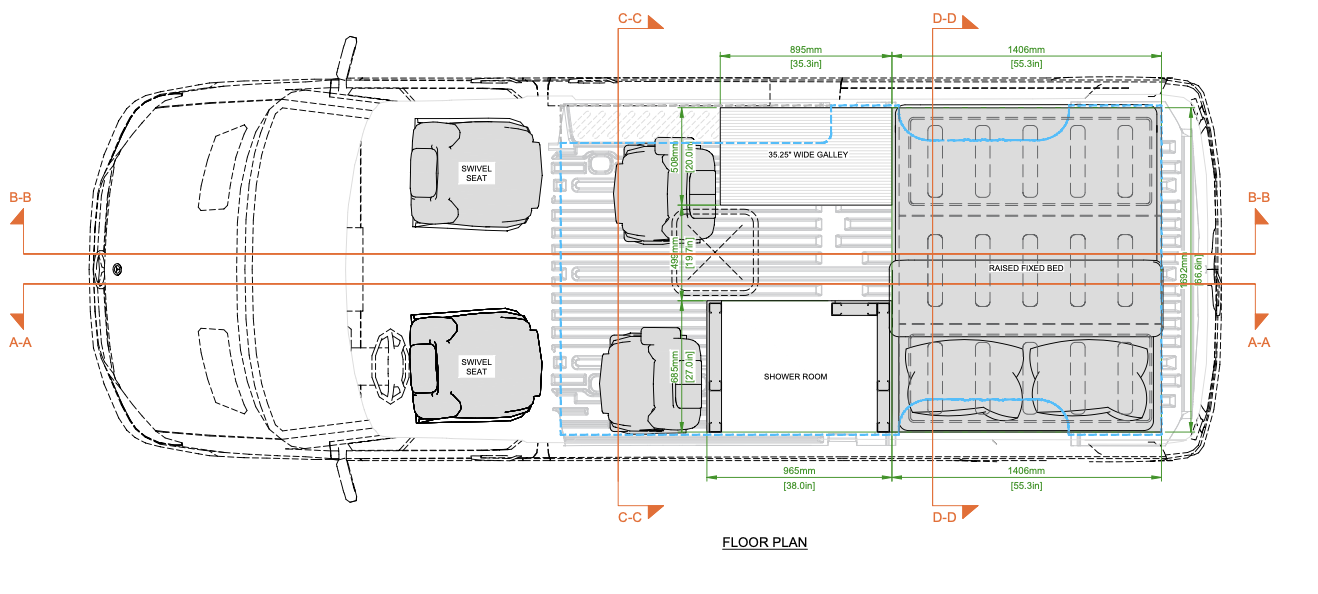

compact FAMILY VAN
144 sprinter
Features include:
full time platform bed in rear
galley kitchen
upper cabinet on passenger side
MODIFIED BEACH HOUSE
170 sprinter
Features include:
convertible bench bed area in rear
galley kitchen
upper cabinets
front bench seating area
full height cabinet at rear of bathroom
Frequently Asked Questions
-
All cabinetry and bed areas are included. You will be responsible for your walls, ceiling, flooring and finish trim. Drawer boxes and fronts are not included unless they are “flat” front and not shaker style fronts.
-
Our files are compatible with any CNC router that supports standard cut files. If you don’t have a CNC machine, you can take the files to a local CNC shop or maker space for cutting.
-
Yes! The files are editable in CAD software, so you can tweak the design to fit your specific needs. We do not offer any customization services so this will need to be done on your own.
-
Nope! If you can follow basic assembly instructions, you can use these plans. The hardest part (measuring and designing) is already done for you.
-
These plans are specifically designed for the Sprinter, but they can be modified to fit other models with some adjustments. Again this will need to be done on your own.
-
Due to the nature of digital files, all sales are final. However, if you have any issues, our team is happy to assist you!
Ready to Build Your Van Faster, Smarter, and Easier?
Stop wasting time with manual measurements and inaccurate cuts.
